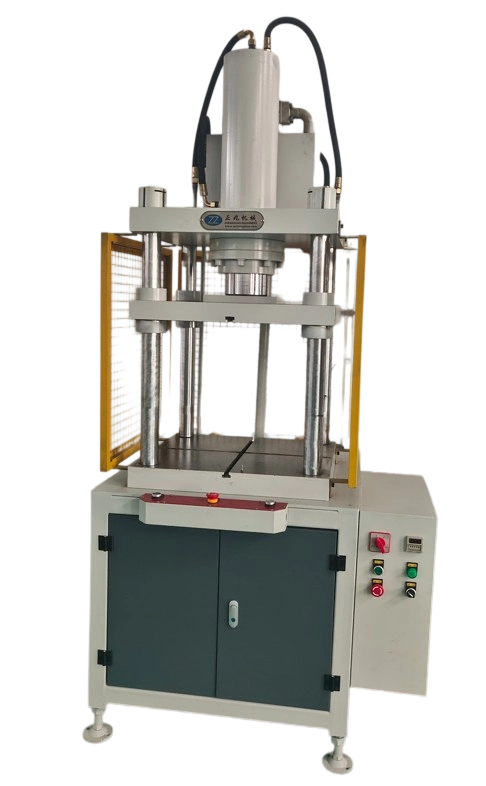

It adopts a four-column and three-plate structure, with high precision between the movable plate and the working surface. Four precision guide sleeves ensure high vertical accuracy of the downward pressure.
The oil cylinder adopts adjustable type, with high accuracy of the downward pressure point and a repeatability accuracy reaching 0.01mm.
The equipment is hydraulically combined inside the frame, featuring a compact structure and an elegant and generous appearance.
Under the workbench, there are casters and foot cups, which can be moved easily, saving effort and efficiency.
The work is stable and reliable, and it can record the number of workpieces, qualified and unqualified in each shift.
The machine can be equipped with grating and safety doors to achieve safer operation and reduce the coefficient of dangerous operations
This equipment can also be widely used in industries such as electronics, home appliances, printing, packaging, plastics, furniture, and automobiles. (Such as: motor assembly, shaft center, bearing press-in, transformer forming, electrical switch assembly, electronic and computer parts assembly, riveting, photo frame forming, plastic forming, cutting, trademark printing, typing, etc.)
| ZZ-S-5T | ZZ-S-15T | ZZ-S-30T | ZZ-S-50T |
| Theoretical output force | (1-5)T | (5-15)T | (10-30)T | (15-50)T |
| Working surface size | (400*300)mm | (500*400)mm | (700*600)mm | (700*600)mm |
| Maximum working height | 400mm | 400mm | 400mm | 400mm |
| Cylinder stroke | 200mm | 200mm | 200mm | 200mm |
| Cylinder descending speed | 75 | 75 | 75 | 75 |
| Cylinder ascending speed | 100 | 100 | 100 | 100 |
| Heating template size | （300*240)mm | Customizable | Customizable | Customizable |
| Heating power | Customizable | Customizable | Customizable | Customizable |
| Power supply | 3*380VAO,50/6HZ | 3*380VAO,50/6HZ | 3*380VAO,50/6HZ | 3*380VAO,50/6HZ |
