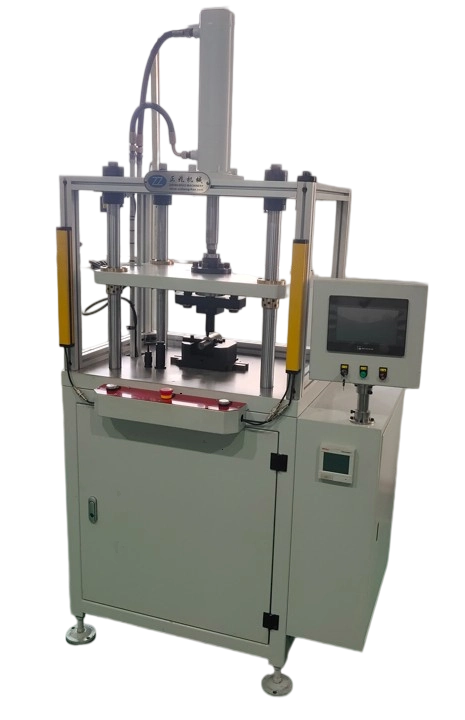

CNC four-column hydraulic press

It adopts a four-column and three-plate structure, with high precision between the movable plate and the working surface. Four precision guide sleeves ensure high vertical accuracy of the downward pressure.

The oil cylinder adopts adjustable type, with high accuracy of the downward pressure point and a repeatability accuracy reaching 0.01mm.

The equipment is hydraulically combined inside the frame, featuring a compact structure and an elegant and generous appearance.

Under the workbench, there are casters and foot cups, which can be moved easily, saving effort and efficiency.

The work is stable and reliable, and it can record the number of workpieces, qualified and unqualified in each shift.

In addition, the upper and lower templates can be equipped with heating devices and imported intelligent thermostats, with temperature differences accurate to ± degrees. The temperatures of the upper and lower templates can be controlled separately, which is convenient to operate.

In addition, an intermediate template can be selected to add a force sensor and display, accurately showing the force condition of the product to meet the requirements of the work.

Electronic rulers, grating rulers and displays can be added to accurately show the displacement status of the oil cylinder, meeting the requirements of the work.

The machine can be equipped with grating and safety doors to achieve safer operation and reduce the coefficient of dangerous operations.

This equipment can also be widely used in industries such as electronics, home appliances, printing, packaging, plastics, furniture, and automobiles. (Such as: motor assembly, shaft center, bearing press-in, transformer forming, electrical switch assembly, electronic and computer component assembly, riveting, photo frame forming, plastic forming, cutting, trademark printing, typing, etc.)
